Product Information PVC BUTTERFLY VALVE
Quantity
Unit Piece/s
* message

The impact sprinkler's long throw radius and uniform water distribution re-creates the effect of natural rainfall, and the device quickly replaced the centuries-old technique of furrow irrigation, in which trenches were dug between rows of crops and flooded.

PVC BUTTERFLY VALVE

Parameter:

Goods number 9201
color black, gray
material UPVC
working pressure PN16, PN10
size for socket ends 63mm,75mm,90mm,110mm,140mm,160mm
size for thread ends 2inch to 8inch
standard DIN, ANSI
← Prev Next →

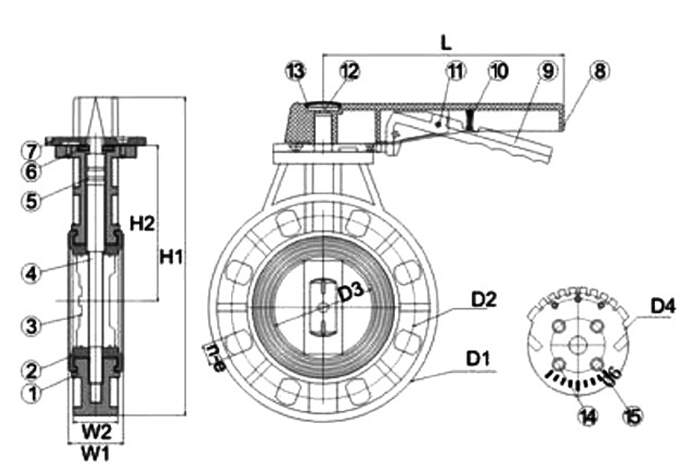

NO. PART MATERIAL Q'TY
1 Body PVC 1
2 Seat Seal EPDM, FPM(NBR) 1
3 Gate PVC 1
4 Stem Steel, 2Cr13, SS304, SS316 1
5 O-Ring EPDM, FPM(NBR) 1
6 Washer ABS 1
7 Locking Plate PVC 1
8 Large Handle ABS 1
9 Small Handle ABS 1
10 Spring SS304,316 1
11 Pin SS304,316 1
12 Bolt SS304,316 1
13 Handle Cap ABS 1
14 Inserted Bolt SS304,316 4
15 Bolt Cap PVC 4

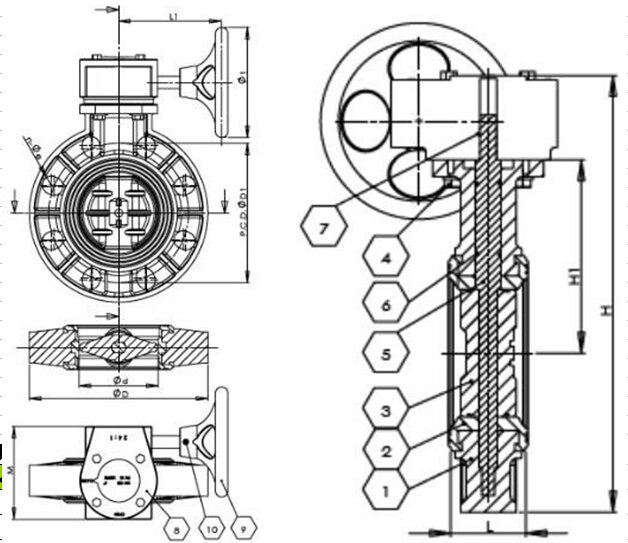

NO. PART MATERIAL Q'TY
1 Body PVC,CPVC,PPG 1
2 Seat Seal EPDM, FPM 1
3 DISC PVC,CPVC,PPG 1
4 Bolt SUS304 1
5 Stem Steel/SUS304 1
6 O-Ring EPDM, FPM 1
7 Key Steel  1
8 Gear Box Iron 1
9 Hand Wheel Iron 1
10 Pin Steel 1
